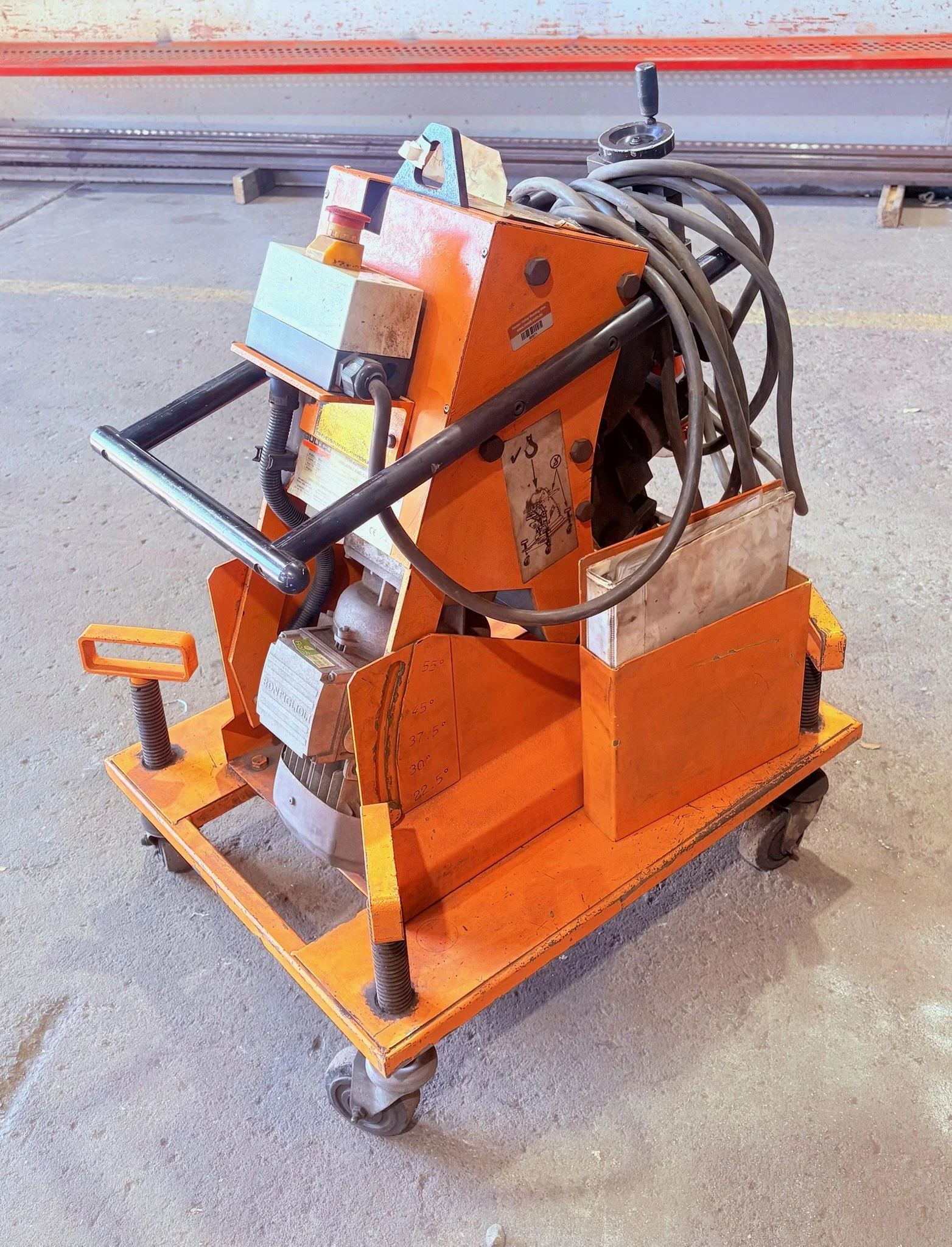

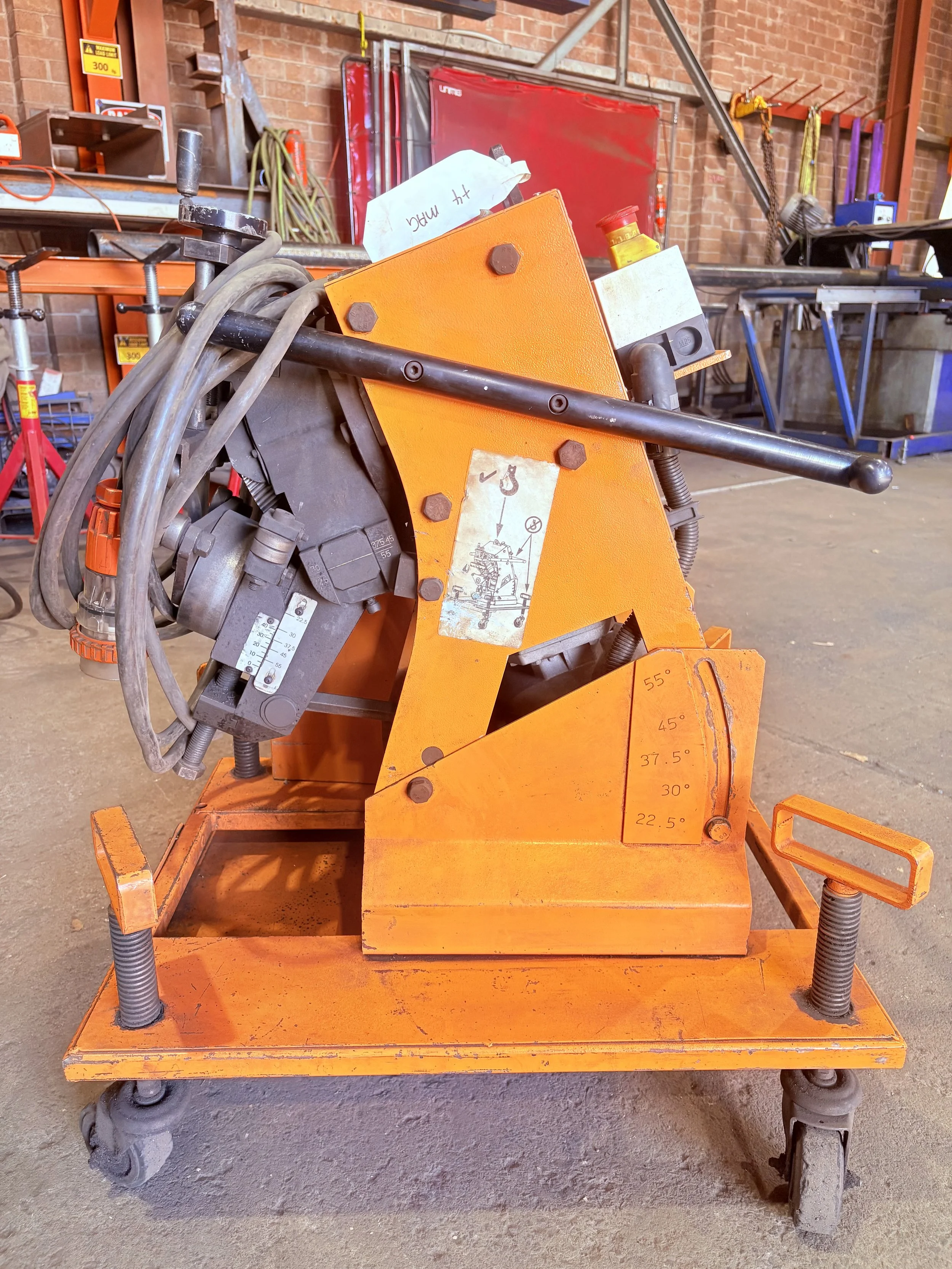

The Gullco KBM-18 Plate Beveller is a portable, self-propelled plate edge bevelling machine designed to produce clean, machined bevels without thermal distortion. Ideal for fabrication workshops, steel manufacturers and industrial applications, the KBM-18 delivers consistent, high-quality weld preparation while reducing labour time and improving productivity.

Capable of bevelling mild steel, stainless steel and aluminium plate from 6mm to 38mm thick, the KBM-18 produces accurate bevels that are immediately ready for welding, eliminating the heat-affected zones associated with thermal cutting methods.

Its self-propelled operation ensures uniform bevels over long plate lengths while reducing operator fatigue. With adjustable bevel angles and a robust industrial gearbox, the KBM-18 is trusted by fabrication businesses worldwide for reliable, repeatable performance.

Whether you're preparing structural steel, pressure vessels, tanks, pipelines or heavy fabrication projects, the Gullco KBM-18 delivers professional-quality results with maximum efficiency.

Specifications

• Portable self-propelled plate edge beveller

• Bevels mild steel, stainless steel and aluminium

• Plate thickness: 6mm – 38mm

• Maximum bevel width: 18mm

• Maximum bevel depth: 15.6mm

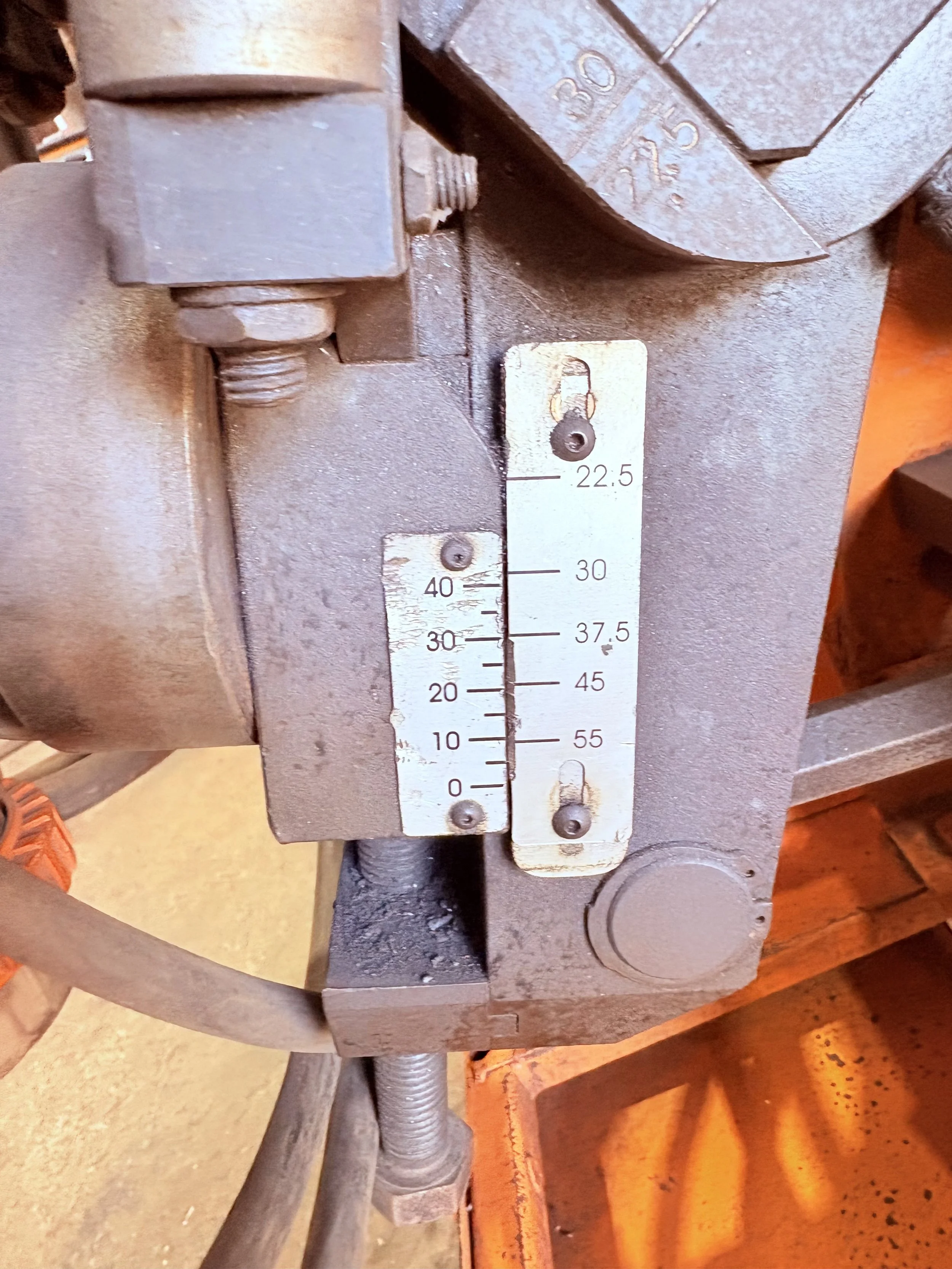

• Adjustable bevel angles:

  • 22.5°

  • 30°

  • 37.5°

  • 45°

  • 55°

• Bevel speed: Up to 3 metres per minute

• 2HP three-phase motor

• Weight: Approximately 153kg (with standard undercarriage)

Key Features

• Self-propelled operation

• Produces clean, weld-ready bevels

• No thermal distortion or heat affected zone

• Suitable for mild steel, stainless steel and aluminium

• Adjustable bevel angles

• Heavy-duty industrial gearbox

• Portable design for workshop or on-site use

• Reduces labour and fabrication time

• Delivers consistent, repeatable results

Ideal Applications

• Steel fabrication

• Structural steel manufacturing

• Pressure vessels

• Tanks

• Pipe fabrication

• Shipbuilding

• Mining equipment

• Heavy engineering

• General fabrication workshops

Why Choose the Gullco KBM-18?

The Gullco KBM-18 is recognised worldwide for delivering fast, accurate and consistent plate edge preparation. By producing precise machined bevels without heat distortion, it reduces rework, improves weld quality and increases fabrication efficiency. Whether you're working in a workshop or on-site, the KBM-18 provides dependable performance for demanding industrial applications.

Available Accessories

• Adjustable hydraulic undercarriage

• Spring-loaded caster wheel assembly

• Additional bevel angle pins

• Underside bevelling machine (KBM-18U)

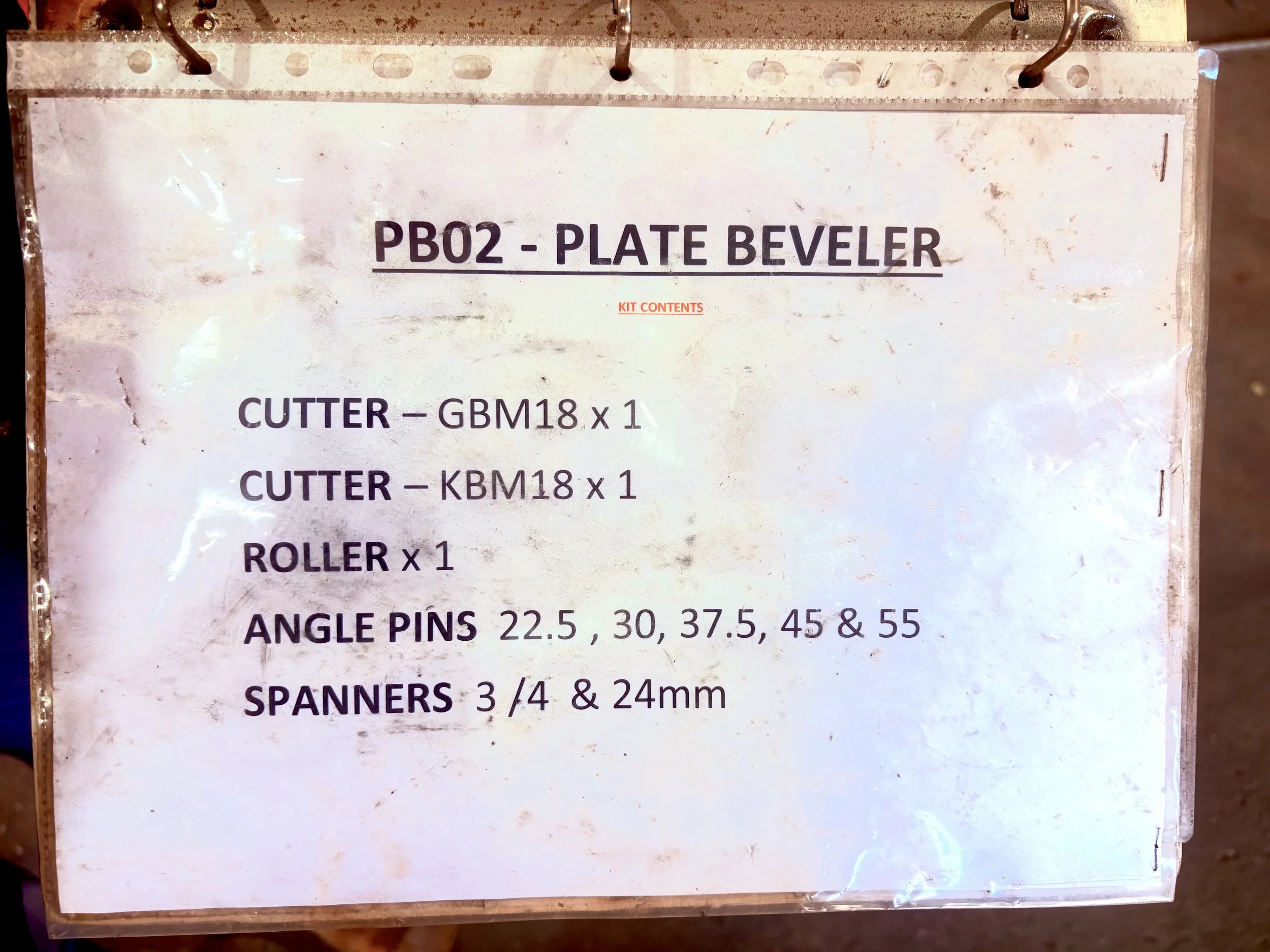

• Tool kit and replacement cutters

Need More Information?

As an authorised supplier, IndigeFab can help you select the right Gullco plate bevelling solution for your workshop or project.

Contact our team today for pricing, availability and expert advice.
